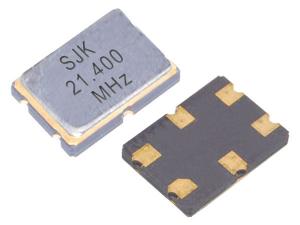

7050 SMD Monolithic Crystal Filter

7050 SMD monolithic crystal filter supports surface mounting. Adoption of a ceramic container has enabled the dimensions of the filter to be 7×5×1.30mm. This crystal filter also supports a wide frequency range from 20MHz up to 90MHz, it can be applied to radio communications, mobile communications, two way radio, etc.

Features
1. 7.0×5.0×1.3mm size miniature SMD crystal filter.
2. Excellent heat and shock-resistance.
3. Good guaranteed attenuation.
4. Suitable for automatic pick and place; Solder reflow capable.
5. RoHS Compliant /Pb Free.

Electrical Specifications
Model CF Series (7050 SMD Monolithic Crystal Filter)
Frequency Range 20~90MHz
Overtone Order Fundamental
Pole 2 /3 /4
Pass Bandwidth ±3.75KHz Min./3dB, or specify (at 21.4MHz)
Stop Bandwidth ±25KHz Max./40dB, or specify (at 21.4MHz)
Ripple 1.0dB Max. or specify (at 21.4MHz)
Insertion Loss 2.0dB Max. or specify (at 21.4MHz)
Guaranteed Attenuation 70dB Min. or specify (at 21.4MHz)
Storage Temperature Range -40~+85℃
Operating Temperature Range -20~+70℃

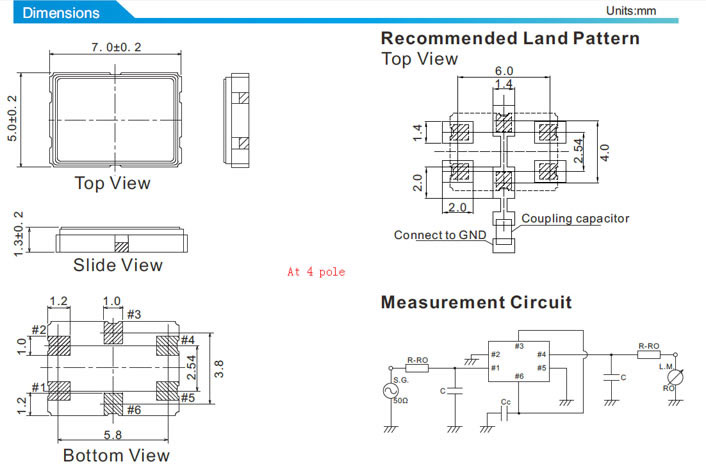

Dimension(L×W×H) 7.0×5.0×1.30(mm)
Pin No. Connection
#1 Input
#2 GND
#3 Connect with #6
#4 Output
#5 GND
#6 Connect with #3
